Dimmable and spectrum flexible LED fixtures for maximum control

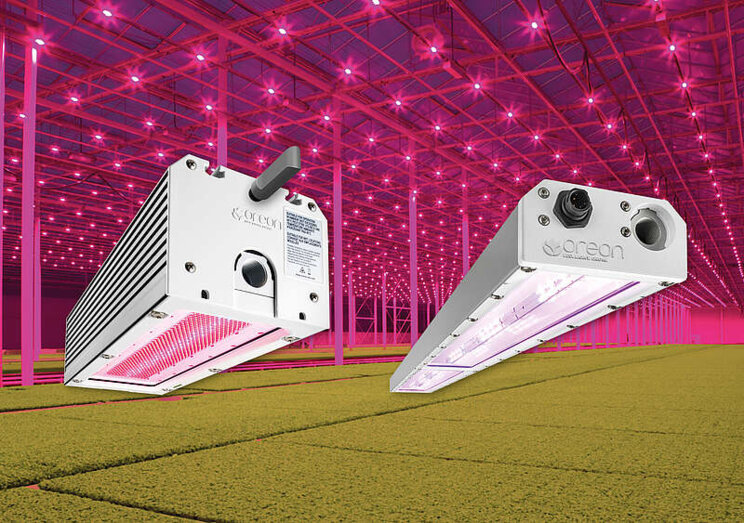

The new Monarch with 1200 W internal driver is available in 2 variants:
1. The 'high efficiency' fixture has the highest light output: max. 4020 ?mol/s at a 1120 W consumption and 3.6 ?mol/J efficiency. This is recommended for high-tech greenhouse projects where sufficient height is available, so that a high uniformity is achieved with fewer fixtures. Due to its high efficiency, this fixture is also the best option for growers with a limited power capacity.

2. The Monarch 'economic' fixture with 1200 W driver has a lower initial investment. It has a maximum light output of 3810 ?mol/s and, with a 1137 W consumption, the efficiency is 3.4 ?mol/J.

The Monarch 'HPS replacement' (max. 3560 ?mol/s, 1050 W and 3.4 ?mol/J) is ideal for 1-to-1 replacement of HPS lamps. This is a smart choice when an existing installation can be used, as it will provide at least 85% more light.

Thanks to the new LED chips, the output of Dutch Powerhouse Empress (710 W) has also been increased. It is now 18% higher compared to the last version of the lamp in 2021. This fixture is often chosen when switching from HPS to LED, as it helps the grower save more than 30% on energy, while simultaneously increasing the light level by 30%.

Every greenhouse is different in terms of surface area, height, location and crop. Designing a light plan is always a custom job. With these 4 top light variants, Oreon can better meet the growers' requirements and wishes and an optimal LED lighting solution can be made for every conceivable scenario. A datasheet with all spectral information can be downloaded from the Oreon website.

Oreon's LED Control Center

Oreon's LED Control Center enables growers to control their assimilation lighting with unsurpassed precision, thanks to a reliable wireless network in the greenhouse or cultivation area. From the Control Center, top lights equipped with a dongle can be dimmed to compensate for fluctuations in the amount of sunlight that is available. The light level can be adjusted at different times of the day in several cultivation areas.

The multi-layer Embrace fixture can also be controlled from the Control Center. This light is not only dimmable, but the spectrum can also be adjusted. For example, the light can be adapted to the growth phase of the plant and sunrise and sunset can be simulated in order to allow the crops to grow as efficiently as possible.

When developing the system, flexibility for the grower was crucial: the LED fixtures can be placed in an infinite number of different groups. Multiple schedules can be created for each group with an unlimited number of changes per day. Fixtures can also easily be reassigned from one group to another. This way, it is guaranteed that every centimeter of the growing area receives exactly the required spectrum or amount of light.

Discover the latest developments of Oreon during the GreenTech 2022 in Amsterdam at stand 01.632.

Source: HortiBiz
