Model calculates greenhouse temperature elaborately

The greenhouse temperature is one of the most important variables for a grower. After all, the temperature determines the growth of the crop and the need for energy. However, it is never equally hot or cold everywhere. As a result, growth differences may arise in the crop, for example, or the control of the crop may not take place optimally.

An extensive model

WUR developed a climate model for a greenhouse in which the user can enter a large number of variables about, among other things, the greenhouse (for example, size, height, location), the climate control system (e.g. heating, ventilation), the greenhouse cover properties (glass, transmissivity, etc.), the screen (material, insulating value, permeability, position) and the crop (type of crop, size, etc.). After all, all these variables determine the distribution of the heat in the greenhouse. In addition, the user can enter weather conditions (such as wind and solar radiation), as well as the time and day of year (which determines the position of the sun).

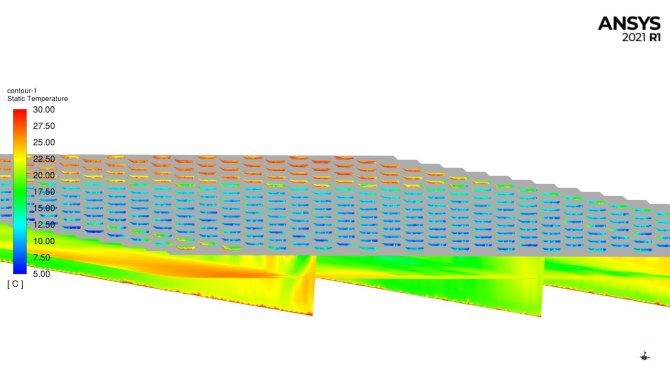

Based on all these variables, the model calculates the climate (e.g. temperature, humidity) per cubic centimeter creating a 3D (length, width, height) map of the greenhouse climate. The model can also calculate the consequences of certain cultivation interventions. For example, the user can choose to open or close a number of greenhouse windows in the model, or do so partially: the model shows how the temperature distribution in the greenhouse is affected by this. The model was validated last year by comparing it with measurements in practice.

Continue reading.

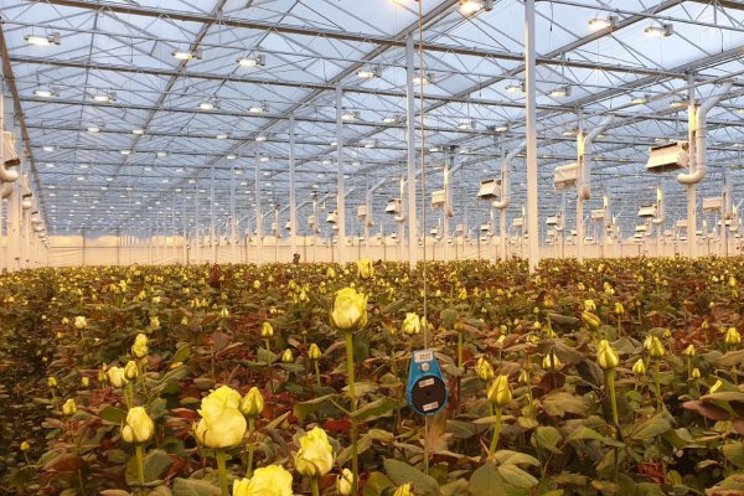

Photo courtesy of Wageningen
